SIMPO HV
128V~576V Battery System I 6.4kWh~28.8kWh

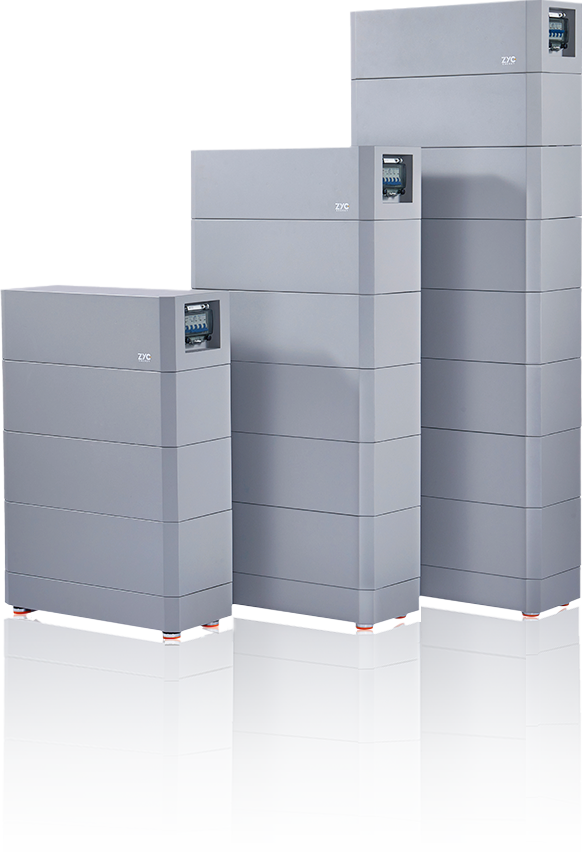

Up to 8 Towers in Parallel
Robustness Residential Storage
Up to 8 Towers in Parallel
Robustness Residential Storage
Module Data | 3.2kWh, 64V, 36kg | ||||||||
Module Quantity in Tower | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |
Usable Energy (kWh) | 6.4 | 9.6 | 12.8 | 16.0 | 19.2 | 22.4 | 25.6 | 28.8 | |
Nominal Voltage (V) | 128 | 192 | 256 | 320 | 384 | 448 | 512 | 576 | |
Operating Voltage Range (V) | 120~146 | 180~219 | 240~292 | 300~365 | 360~438 | 420~511 | 480~584 | 540~657 | |
Max Continuous Current (A) | 30 | ||||||||
Peak Output (A) | 45, 5s | ||||||||
Weight (Kg) | 102 | 138 | 174 | 210 | 246 | 282 | 318 | 354 | |
Dimension_W (mm) | 610 | ||||||||
Dimension_D (mm) | 240 | ||||||||
Dimension_H (mm) | 670 | 860 | 1050 | 1240 | 1430 | 1620 | 1810 | 2000 | |
Round-trip Efficiency | 96.0% | ||||||||
Charging Temp Range (°C) | -10~50 | ||||||||
Discharging Temp Range (°C) | -20~50 | ||||||||
Operating Humidity | Up to 95% (Non-condensing) | ||||||||
IP Rating | IP65 | ||||||||
Communication | CAN / Modbus RS485 | ||||||||
Altitude (m) | ≤3000 | ||||||||
Warranty | 10 Years | ||||||||
Scalability (Parallel) | 1~8 Towers | ||||||||
Certificate | UN38.3 / CE / IEC62619 / CEC / VDE2510-50 |
